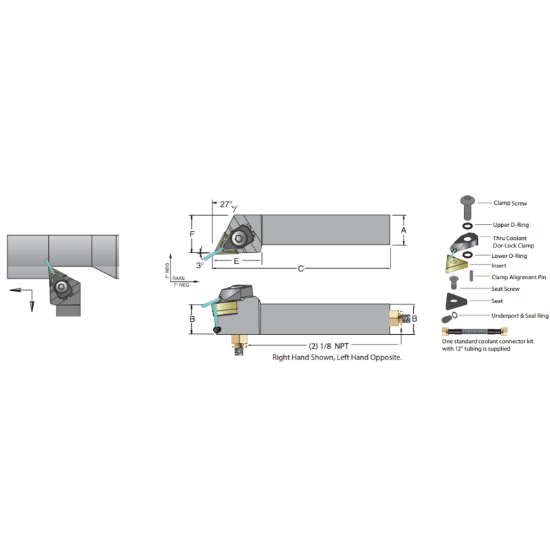

Picture of DORIAN ADTJNR-20-4D Triangle Square 1.250 Shank 6.000 OAL

DORIAN ADTJNR-20-4D Triangle Square 1.250 Shank 6.000 OAL

ANSI: ADTJNR-20-4D

ISO: ADTJNR-20-4D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53071
Delivery date: 3-5 days
$189.91

Details

NegTriangleJetStreamToolhldrRH

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Made In USA No
Application Ext.Turning
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 22 "43"
Overall Len 6.0000 152.40MM
Tool Width 1.2500
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.2500 31.75MM
Lead Angle 93°
Clearance Angle 22.0°
Cutting & Machining Properties
Coolant Thru Yes
Insert Style TN
Hand R/L Right
Inter/Extern External
Insert Shape/Cutter Pocket Shape Triangle
Cool Sply Type Through
Fasteners & Connectors
Seat Screw JT-433
Clamp/Wedge JSLC-HPCTW-4N
Insert Screw SM-S4
Clamp Screw JSCS-04
