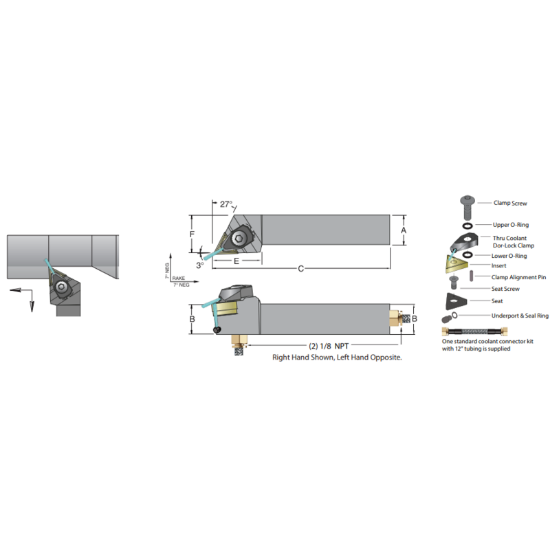

Picture of DORIAN ADTJNR-16-4D Triangle Square 1.000 Shank 6.000 OAL

DORIAN ADTJNR-16-4D Triangle Square 1.000 Shank 6.000 OAL

ANSI: ADTJNR-16-4D

ISO: ADTJNR-16-4D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53069
Delivery date: 3-5 days
$178.70

Details

NegTriangleJetStreamToolhldrRH

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Shipping State Texas
Made In USA No
Dimensional Specifications
Insert Size Ic 22 "43"
Overall Len 6.0000 152.40MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Lead Angle 93°
Clearance Angle 22.0°
Machine Side Connection Size 1.0000 25.40MM
Tool Width 1.0000
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
Cool Sply Type Through
Hand R/L Right
Coolant Thru Yes
Insert Style TN
Fasteners & Connectors
Insert Screw SM-S4
Clamp/Wedge JSLC-HPCTW-4N
Seat Screw JT-433
Clamp Screw JSCS-04
