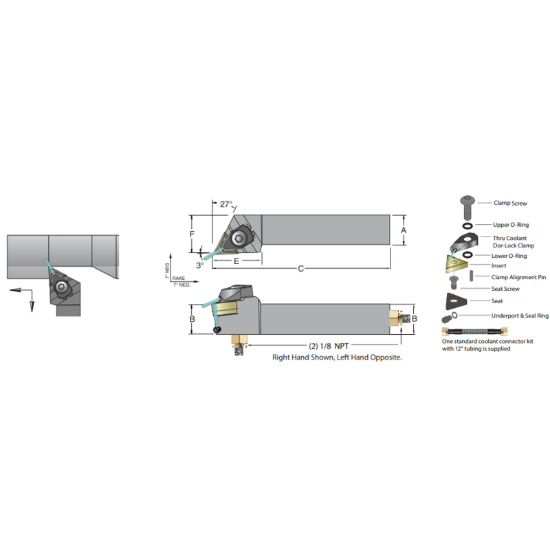

Picture of DORIAN ADTJNR-16-3D Triangle Square 1.000 Shank 6.000 OAL

DORIAN ADTJNR-16-3D Triangle Square 1.000 Shank 6.000 OAL

ANSI: ADTJNR-16-3D

ISO: ADTJNR-16-3D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53067
Delivery date: 3-5 days
$178.70

Details

NegTriangleJetStreamToolhldrRH

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Made In USA No
Application Ext.Turning
Package Size 1
Shipping State Texas
Dimensional Specifications
Lead Angle 93°
Clearance Angle 22.0°
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 6.0000 152.40MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 16 "33"
Tool Width 1.0000
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Cool Sply Type Through
Coolant Thru Yes
Inter/Extern External
Insert Style TN
Hand R/L Right
Fasteners & Connectors
Insert Screw SM-M3-T
Clamp/Wedge JSLC-HPTW3N
Clamp Screw JSCS-04
Seat Screw JT-322
