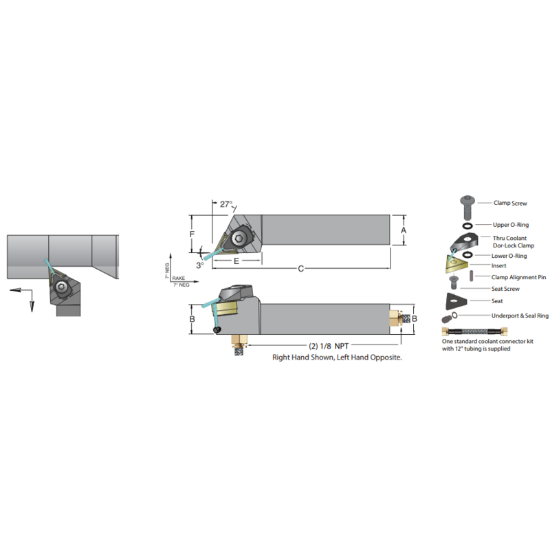

Picture of DORIAN ADTJNR-12-4B Triangle Square 0.750 Shank 4.500 OAL

DORIAN ADTJNR-12-4B Triangle Square 0.750 Shank 4.500 OAL

ANSI: ADTJNR-12-4B

ISO: ADTJNR-12-4B

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53065
Delivery date: 3-5 days
$154.81

Details

NegTriangleJetStreamToolhldrRH

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Shipping State Texas
Insert Application General Purpose
Insert Type Negative
Made In USA No
Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Insert Size Ic 22 "43"
Overall Len 4.5000 114.30MM
Machine Side Connection Size 0.7500 19.05MM
Tool Width 0.7500
Lead Angle 93°
Clearance Angle 22.0°
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
Cool Sply Type Through
Coolant Thru Yes
Hand R/L Right
Insert Style TN
Fasteners & Connectors
Seat Screw JT-433
Insert Screw SM-S4
Clamp/Wedge JSLC-HPCTW-4N
Clamp Screw JSCS-04
