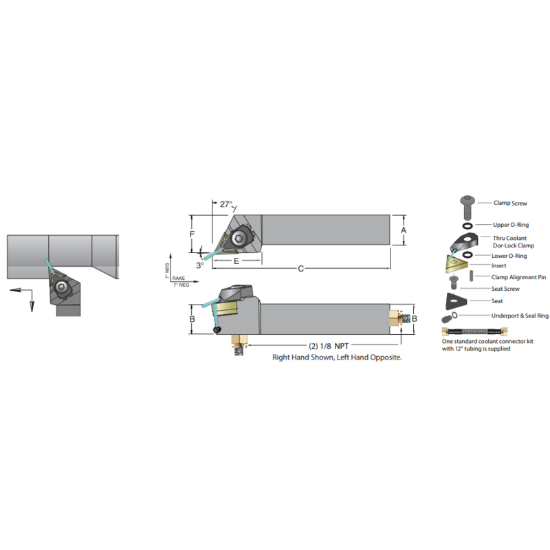

Picture of DORIAN ADTJNL-16-3D Triangle Square 1.000 Shank 6.000 OAL

DORIAN ADTJNL-16-3D Triangle Square 1.000 Shank 6.000 OAL

ANSI: ADTJNL-16-3D

ISO: ADTJNL-16-3D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53068
Delivery date: 3-5 days
$178.70

Details

NegTriangleJetStreamToolhldrLH

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Shipping State Texas
Insert Type Negative
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Clearance Angle 22.0°
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 16 "33"
Lead Angle 93°
Tool Width 1.0000
Overall Len 6.0000 152.40MM
Cutting & Machining Properties
Coolant Thru Yes
Cool Sply Type Through
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
Insert Style TN
Hand R/L Left
Fasteners & Connectors
Clamp/Wedge JSLC-HPTW3N
Seat Screw JT-322
Insert Screw SM-M3-T
Clamp Screw JSCS-04
