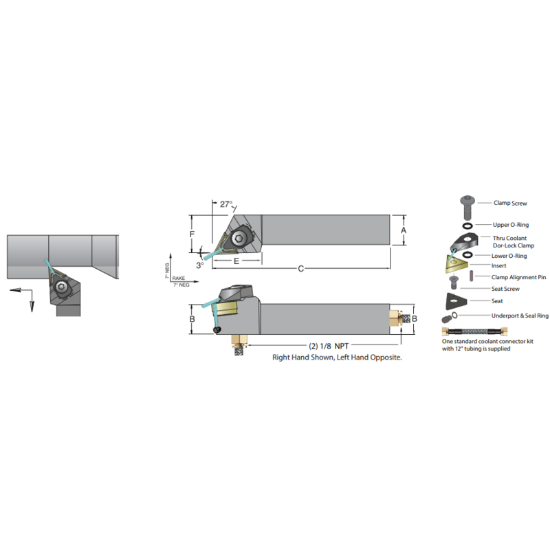

Picture of DORIAN ADTJNL-12-3B Triangle Square 0.750 Shank 4.500 OAL

DORIAN ADTJNL-12-3B Triangle Square 0.750 Shank 4.500 OAL

ANSI: ADTJNL-12-3B

ISO: ADTJNL-12-3B

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53064
Delivery date: 3-5 days
$154.81

Details

NegTriangleJetStreamToolhldrLH

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Texas
Application Ext.Turning
Insert Type Negative
Made In USA No
Package Size 1
Insert Application General Purpose
Dimensional Specifications
Machine Side Connection Size 0.7500 19.05MM
Tool Width 0.7500
Clearance Angle 22.0°
Overall Len 4.5000 114.30MM
Lead Angle 93°
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Insert Size Ic 16 "33"
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Coolant Thru Yes
Insert Style TN
Hand R/L Left
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
Cool Sply Type Through
Fasteners & Connectors
Seat Screw JT-322
Clamp Screw JSCS-04
Insert Screw SM-M3-T
Clamp/Wedge JSLC-HPTW3N
