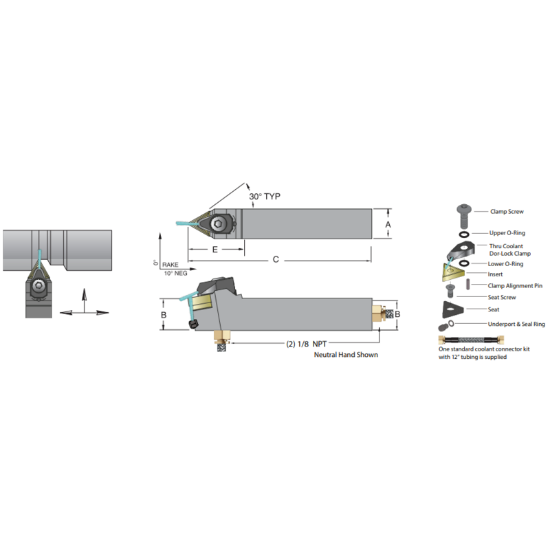

Picture of DORIAN ADTENN-16-4D Triangle Square 1.000 Shank 6.000 OAL

DORIAN ADTENN-16-4D Triangle Square 1.000 Shank 6.000 OAL

ANSI: ADTENN-16-4D

ISO: ADTENN-16-4D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53078
Delivery date: 3-5 days
$178.70

Details

NegTriangleJetStreamToolhldrNH

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Texas
Application Ext.Turning
Insert/Tool Tool
Dimensional Specifications
Overall Len 6.0000 152.40MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Tool Width 1.0000
Insert Size Ic 22 "43"
Lead Angle 30°
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Insert Style TN
Hand R/L Neutral
Cool Sply Type Through
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
Coolant Thru Yes
Fasteners & Connectors
Seat Screw JT-433
Clamp Screw JSCS-04
Clamp/Wedge JSLC-HPCTW-4N
Insert Screw SM-S4
