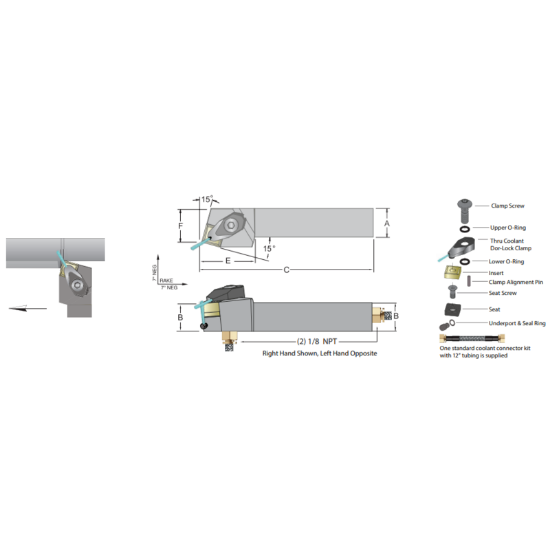

Picture of DORIAN ADSRNR-24-5E Square Square 1.500 Shank 7.000 OAL

DORIAN ADSRNR-24-5E Square Square 1.500 Shank 7.000 OAL

ANSI: ADSRNR-24-5E

ISO: ADSRNR-24-5E

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53047
Delivery date: 3-5 days
$241.82

Details

NegSquare JetStream ToolhldrRH

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert Application General Purpose
Insert Type Negative
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Made In USA No
Dimensional Specifications
Included Angle 15°
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Width 1.5000
Insert Size Ic 16 "54"
Machine Side Connection Size 1.5000 38.10MM
Overall Len 7.0000 177.80MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Cool Sply Type Through
Coolant Thru Yes
Insert Style CN
Inter/Extern External
Fasteners & Connectors
Seat Screw JS-533
Insert Screw SM-M6
Clamp/Wedge JSLC-HPC5
Clamp Screw JSCS-04
