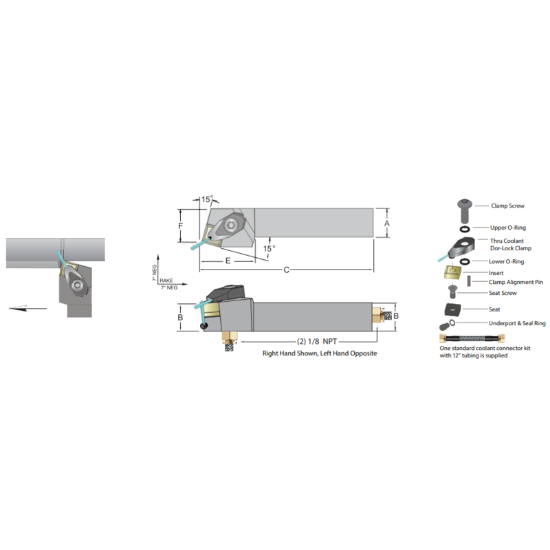

Picture of DORIAN ADSRNR-20-5D Square Square 1.250 Shank 6.000 OAL

DORIAN ADSRNR-20-5D Square Square 1.250 Shank 6.000 OAL

ANSI: ADSRNR-20-5D

ISO: ADSRNR-20-5D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53045
Delivery date: 3-5 days
$189.91

Details

NegSquare JetStream ToolhldrRH

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Texas
Application Ext.Turning
Package Size 1
Dimensional Specifications
Machine Side Connection Size 1.2500 31.75MM
Overall Len 6.0000 152.40MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 16 "54"
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Included Angle 15°
Tool Width 1.2500
Cutting & Machining Properties
Cool Sply Type Through
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Insert Style CN
Inter/Extern External
Fasteners & Connectors
Clamp Screw JSCS-04
Insert Screw SM-M6
Clamp/Wedge JSLC-HPC5
Seat Screw JS-533
