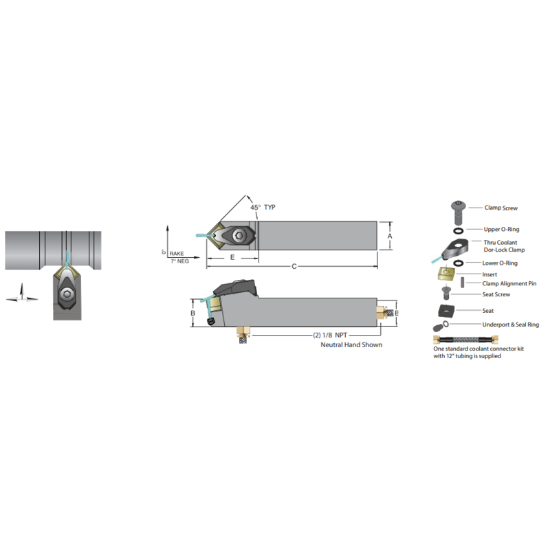

Picture of DORIAN ADSDNN-24-5E Square Square 1.500 Shank 7.000 OAL

DORIAN ADSDNN-24-5E Square Square 1.500 Shank 7.000 OAL

ANSI: ADSDNN-24-5E

ISO: ADSDNN-24-5E

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53058
Delivery date: 3-5 days
$201.09

Details

NegSquare JetStream ToolhldrNH

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Shipping State Texas
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Clearance Angle 40.0°
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Size 1.5000 38.10MM
Overall Len 7.0000 177.80MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Width 1.5000
Insert Size Ic 16 "54"
Lead Angle 45°
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Hand R/L Neutral
Insert Style CN
Inter/Extern External
Coolant Thru Yes
Cool Sply Type Through
Fasteners & Connectors
Seat Screw JS-533
Clamp Screw JSCS-04
Insert Screw SM-M6
Clamp/Wedge JSLC-HPC5
