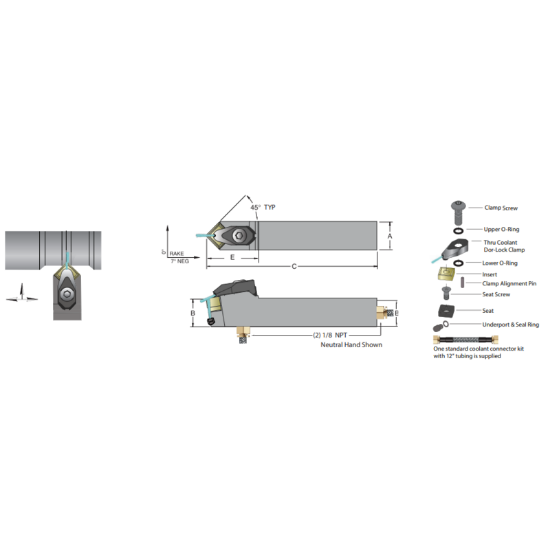

Picture of DORIAN ADSDNN-20-5D Square Square 1.250 Shank 6.000 OAL

DORIAN ADSDNN-20-5D Square Square 1.250 Shank 6.000 OAL

ANSI: ADSDNN-20-5D

ISO: ADSDNN-20-5D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53056
Delivery date: 3-5 days
$189.91

Details

NegSquare JetStream ToolhldrNH

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Application Ext.Turning
Package Size 1
Shipping State Texas
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.2500 31.75MM
Tool Width 1.2500
Lead Angle 45°
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Clearance Angle 40.0°
Overall Len 6.0000 152.40MM
Insert Size Ic 16 "54"
Tool Material Steel
Cutting & Machining Properties
Insert Style CN
Inter/Extern External
Insert Shape/Cutter Pocket Shape Square
Cool Sply Type Through
Hand R/L Neutral
Coolant Thru Yes
Fasteners & Connectors
Clamp Screw JSCS-04
Seat Screw JS-533
Insert Screw SM-M6
Clamp/Wedge JSLC-HPC5
