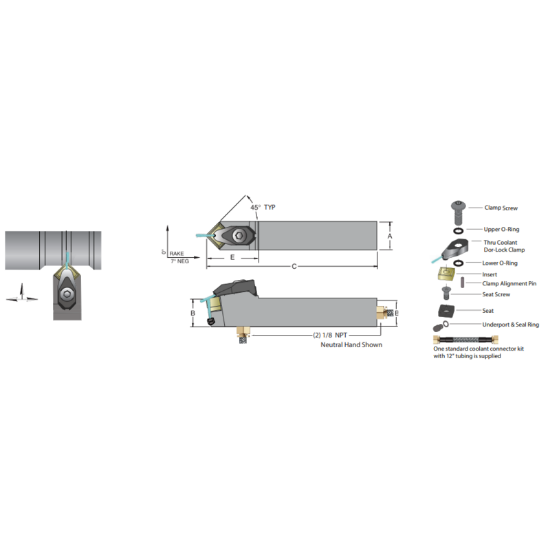

Picture of DORIAN ADSDNN-16-4D Square Square 1.000 Shank 6.000 OAL

DORIAN ADSDNN-16-4D Square Square 1.000 Shank 6.000 OAL

ANSI: ADSDNN-16-4D

ISO: ADSDNN-16-4D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53054
Delivery date: 3-5 days
$182.92

Details

NegSquare JetStream ToolhldrNH

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Application Ext.Turning
Package Size 1
Shipping State Texas
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 12 "43"
Overall Len 6.0000 152.40MM
Tool Width 1.0000
Lead Angle 45°
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Clearance Angle 40.0°
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape Square
Hand R/L Neutral
Coolant Thru Yes
Insert Style SN
Cool Sply Type Through
Fasteners & Connectors
Clamp Screw JSCS-04
Seat Screw JS-432
Clamp/Wedge JSLC-HPCTW-4N
Insert Screw SM-S4
