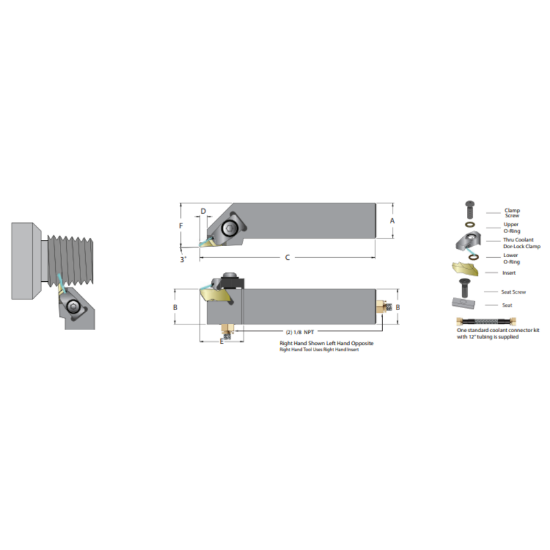

Picture of DORIAN ADNSR24-4E Stick Tool Top Notch Type Square 1.500 Shank 7.000 OAL

DORIAN ADNSR24-4E Stick Tool Top Notch Type Square 1.500 Shank 7.000 OAL

ANSI: ADNSR24-4E

ISO: ADNSR24-4E

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53460
Delivery date: 3-5 days
$207.74
Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Grooving, Ext.Threading
Shipping State Texas
Made In USA No
Insert/Tool Tool
Insert Application General Purpose
Package Size 1
Insert Type Positive
Dimensional Specifications
Insert Size Ic 4
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Over Hang 1.7500
Tool Width 1.5000
Machine Side Connection Size 1.5000 38.10MM
Overall Len 7.0000 177.80MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Top Notch
Coolant Thru Yes
Insert Style TOP NOTCH
Hand R/L Right
Seat/Nest SM-420
Inter/Extern External
Fasteners & Connectors
Insert Screw SL-344
Clamp/Wedge JSLC-HP72 JSLC-HP73
Clamp Screw JSCS-04
