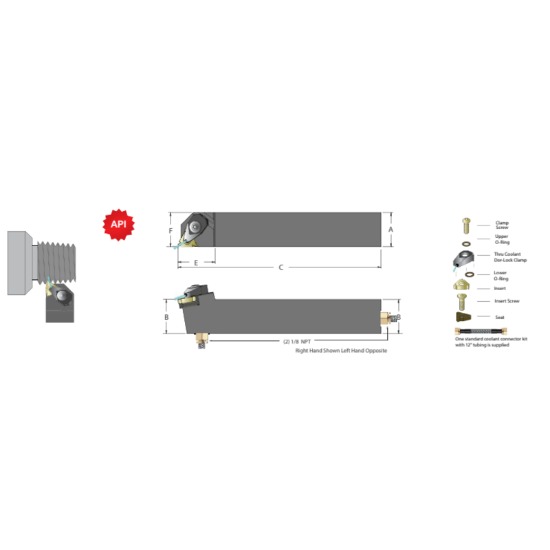

Picture of DORIAN ADLER20-T22API-D Iso Thread Square 1.500 Shank 6.000 OAL

DORIAN ADLER20-T22API-D Iso Thread Square 1.500 Shank 6.000 OAL

ANSI: ADLER20-T22API-D

ISO: ADLER20-T22API-D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53551
Delivery date: 3-5 days
$183.49
Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Threading, Ext.Groove Threading
Package Size 1
Insert/Tool Tool
Insert Type Positive
Shipping State Texas
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.5000 38.10MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Overall Len 6.0000 152.40MM
Tool Width 1.2500
Insert Size Ic 22
Cutting & Machining Properties
Coolant Thru Yes
Seat/Nest NXE-22
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
Insert Style ISO
Hand R/L Right
Fasteners & Connectors
Clamp/Wedge JSLC-HP22N
Insert Screw TS-45.75-15M1
Clamp Screw JSCS-04
