Picture of DORIAN ADLER12-16Q-C Iso Thread Square 0.750 Shank 5.000 OAL

DORIAN ADLER12-16Q-C Iso Thread Square 0.750 Shank 5.000 OAL

ANSI: ADLER12-16Q-C

ISO: ADLER12-16Q-C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53522
Delivery date: 3-5 days
$126.74
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Shipping State Texas
Insert Application General Purpose
Made In USA No
Application Ext.Threading, Ext.Groove Threading
Package Size 1
Insert/Tool Insert

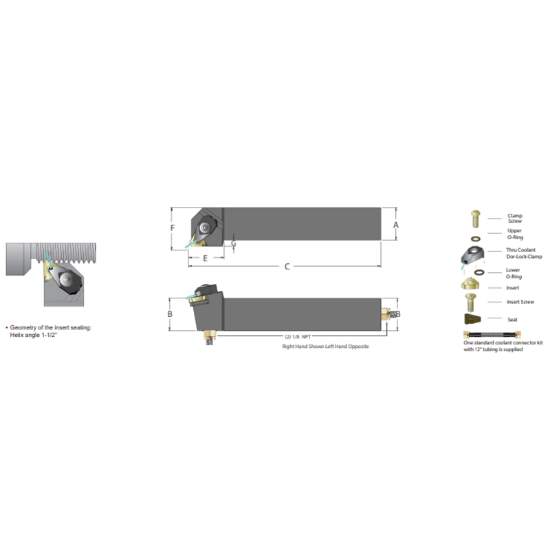

Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Insert Size Ic 16
Overall Len 5.0000 127.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.7500 19.05MM
Tool Width 0.7500
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
Seat/Nest GXE-16
Insert Style ISO
Hand R/L Right
Coolant Thru Yes
Fasteners & Connectors
Clamp/Wedge *JSLC-HP16R-N *JSLC-HP16L-N
Insert Screw TS-35.6-14M1
Clamp Screw JSCS-03
