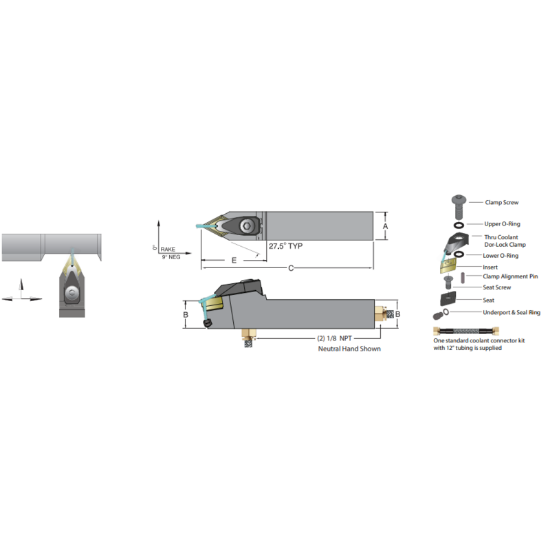

Picture of DORIAN ADDPNN-24-4E 55.0° Square 1.500 Shank 7.000 OAL

DORIAN ADDPNN-24-4E 55.0° Square 1.500 Shank 7.000 OAL

ANSI: ADDPNN-24-4E

ISO: ADDPNN-24-4E

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53035
Delivery date: 3-5 days
$259.09

Details

Neg55°Jet Stream Toolholder NH

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert/Tool Tool
Application Ext.Turning
Insert Application General Purpose
Insert Type Negative
Made In USA No
Package Size 1
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.5000 38.10MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 12 "43"
Tool Width 1.5000
Lead Angle 62.5°
Clearance Angle 57.0°
Overall Len 7.0000 177.80MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
Inter/Extern External
Cool Sply Type Through
Hand R/L Neutral
Fasteners & Connectors
Insert Screw SM-S4
Clamp/Wedge JSLC-HPD4
Clamp Screw JSCS-04
Seat Screw JD-432
