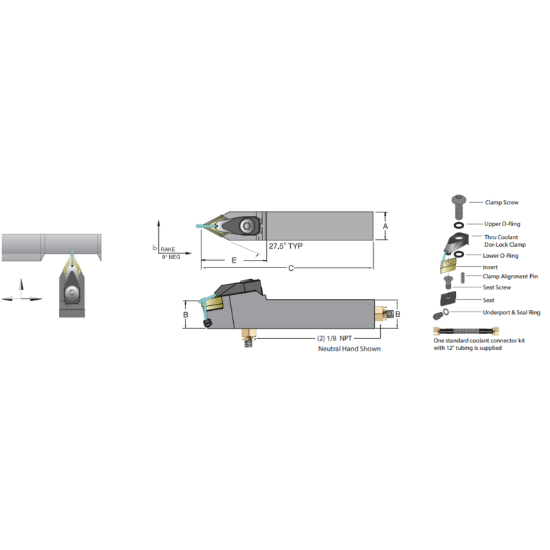

Picture of DORIAN ADDPNN-16-4D 55.0° Square 1.000 Shank 6.000 OAL

DORIAN ADDPNN-16-4D 55.0° Square 1.000 Shank 6.000 OAL

ANSI: ADDPNN-16-4D

ISO: ADDPNN-16-4D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53033
Delivery date: 3-5 days
$191.45

Details

Neg55°Jet Stream Toolholder NH

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Application Ext.Turning
Package Size 1
Shipping State Texas
Insert/Tool Tool
Insert Application General Purpose
Dimensional Specifications
Clearance Angle 57.0°
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Lead Angle 62.5°
Insert Size Ic 12 "43"
Overall Len 6.0000 152.40MM
Tool Width 1.0000
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Insert Style DN
Coolant Thru Yes
Inter/Extern External
Cool Sply Type Through
Hand R/L Neutral
Insert Shape/Cutter Pocket Shape 55.0°
Fasteners & Connectors
Clamp Screw JSCS-04
Clamp/Wedge JSLC-HPD4
Seat Screw JD-432
Insert Screw SM-S4
