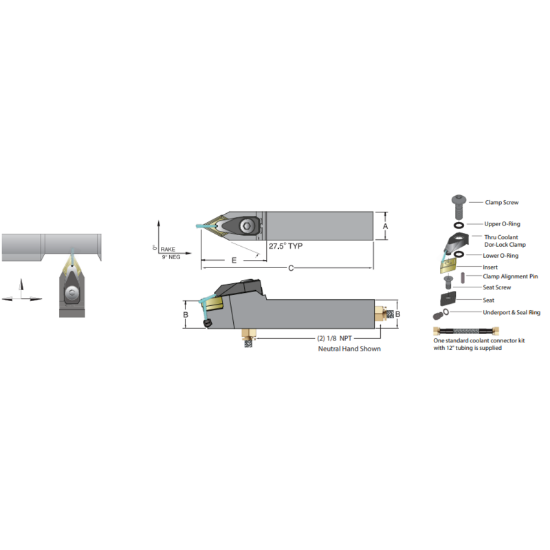

Picture of DORIAN ADDPNN-12-4B 55.0° Square 0.750 Shank 4.500 OAL

DORIAN ADDPNN-12-4B 55.0° Square 0.750 Shank 4.500 OAL

ANSI: ADDPNN-12-4B

ISO: ADDPNN-12-4B

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53031
Delivery date: 3-5 days
$166.71

Details

Neg55°Jet Stream Toolholder NH

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Package Size 1
Application Ext.Turning
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Made In USA No
Dimensional Specifications
Overall Len 4.5000 114.30MM
Lead Angle 62.5°
Clearance Angle 57.0°
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.7500 19.05MM
Tool Width 0.7500
Insert Size Ic 12 "43"
Cutting & Machining Properties
Hand R/L Neutral
Coolant Thru Yes
Inter/Extern External
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
Cool Sply Type Through
Fasteners & Connectors
Seat Screw JD-432
Clamp/Wedge JSLC-HPD4
Insert Screw SM-S4
Clamp Screw JSCS-04
