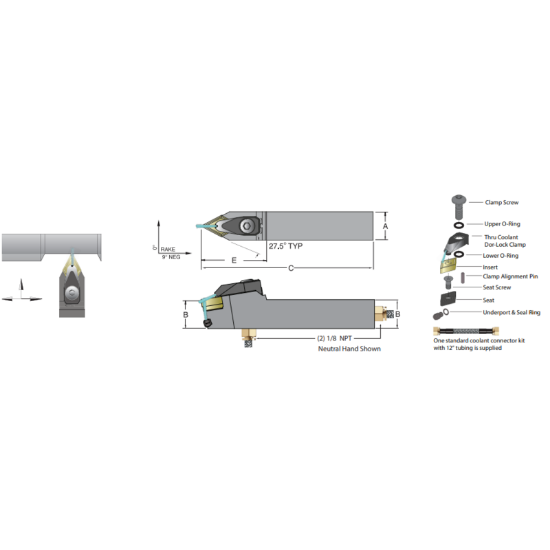

Picture of DORIAN ADDPNN-12-3B 55.0° Square 0.750 Shank 4.500 OAL

DORIAN ADDPNN-12-3B 55.0° Square 0.750 Shank 4.500 OAL

ANSI: ADDPNN-12-3B

ISO: ADDPNN-12-3B

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53030
Delivery date: 3-5 days
$166.71

Details

Neg55°Jet Stream Toolholder NH

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Texas
Insert/Tool Tool
Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Insert Size Ic 11 "33"
Lead Angle 62.5°
Clearance Angle 57.0°
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.7500 19.05MM
Tool Width 0.7500
Overall Len 4.5000 114.30MM
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape 55.0°
Hand R/L Neutral
Insert Style DN
Coolant Thru Yes
Cool Sply Type Through
Fasteners & Connectors
Seat Screw IDSN-322
Clamp Screw JSCS-04
Clamp/Wedge JSLC-HPD3
Insert Screw SM-M4-245
