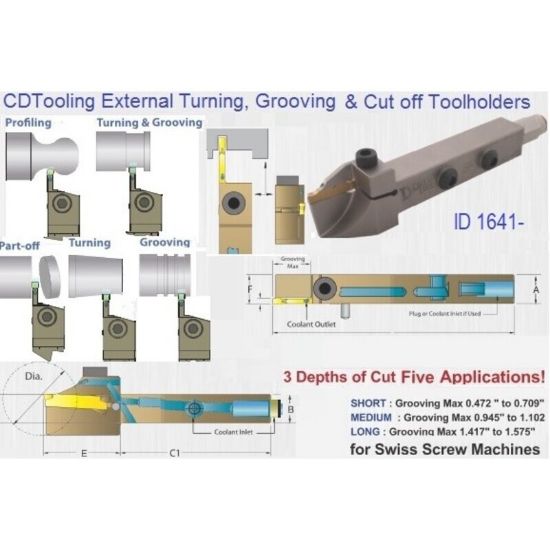

Picture of DORIAN ADDN-TFR-1616-H30-14 Stick Tool Clamp Down Square 0.629 Shank 4.210 OAL

DORIAN ADDN-TFR-1616-H30-14 Stick Tool Clamp Down Square 0.629 Shank 4.210 OAL

ANSI: ADDN-TFR-1616-H30-14

ISO: ADDN-TFR-1616-H30-14

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR61016
Delivery date: 3-5 days
$122.31

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder for double sided part-off inserts

Products specifications
Attribute name Attribute value
General Product Information
Application Swiss, Ext.Grooving, Parting
Made In USA No
Package Size 1
Shipping State Texas
Insert/Tool Tool
Insert Application General Purpose
Insert Type Positive
Dimensional Specifications
Insert Size Ic 30
Tool Over Hang 1.2600
Tool Width 0.6300
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Overall Len 4.2100 106.93MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Inter/Extern External
Hand R/L Right
Insert Style DN
Coolant Thru Yes
