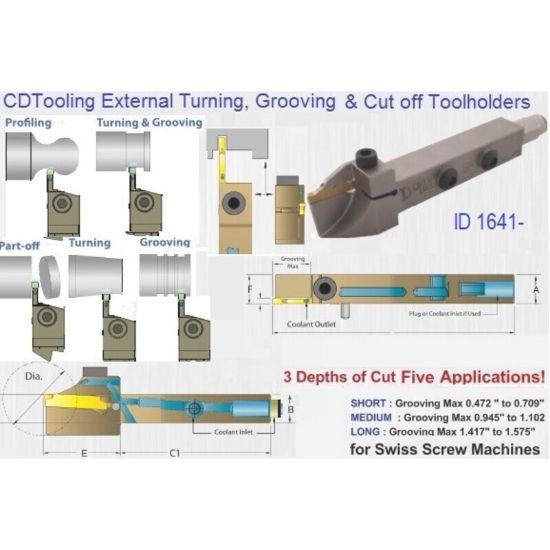

Picture of DORIAN ADDN-TFR-1010-H20-12 Stick Tool Clamp Down Square 0.393 Shank 4.210 OAL

DORIAN ADDN-TFR-1010-H20-12 Stick Tool Clamp Down Square 0.393 Shank 4.210 OAL

ANSI: ADDN-TFR-1010-H20-12

ISO: ADDN-TFR-1010-H20-12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR61010
Delivery date: 3-5 days
$113.77

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder for double sided part-off inserts

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ext.Grooving, Parting, Swiss
Insert Application General Purpose
Made In USA No
Shipping State Texas
Package Size 1
Insert Type Positive
Dimensional Specifications
Insert Size Ic 20
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.3937 10.00MM
Overall Len 4.2100 106.93MM
Tool Over Hang 1.2600
Tool Width 0.3940
Shank/Pilot Dia 0.3937 10.00MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Style DN
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
Inter/Extern External
