Picture of DORIAN ADDN-TFL-2020-K20-06 Stick Tool Clamp Down Square 0.787 Shank 5.200 OAL

DORIAN ADDN-TFL-2020-K20-06 Stick Tool Clamp Down Square 0.787 Shank 5.200 OAL

ANSI: ADDN-TFL-2020-K20-06

ISO: ADDN-TFL-2020-K20-06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR61029
Delivery date: 3-5 days
$127.06

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

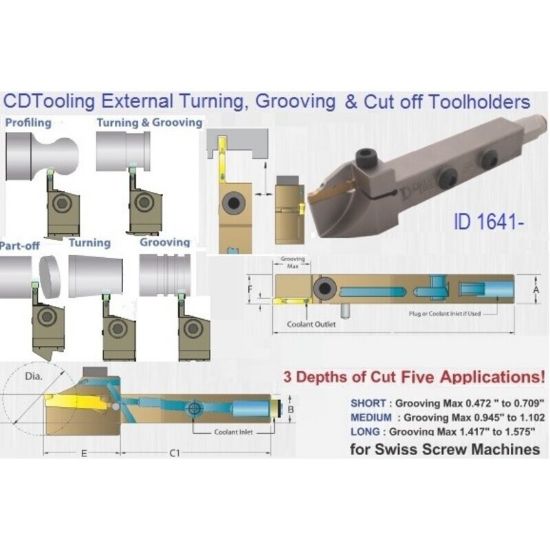

Quick-Disconnect Thru Coolant toolholder for double sided part-off inserts

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert Application General Purpose
Application Swiss, Ext.Grooving, Parting
Insert/Tool Tool
Insert Type Positive
Shipping State Texas
Package Size 1
Dimensional Specifications
Insert Size Ic 20
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.7874 20.00MM
Tool Over Hang 1.2600
Shank/Pilot Dia 0.7874 20.00MM
Overall Len 5.2000 132.08MM
Tool Width 0.7870
Cutting & Machining Properties
Insert Style DN
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Hand R/L Left
Inter/Extern External
