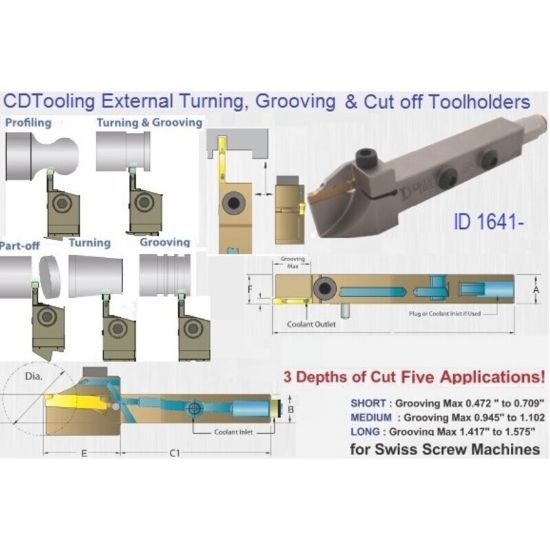

Picture of DORIAN ADDN-TFL-1616-H20-12 Stick Tool Clamp Down Square 0.629 Shank 4.210 OAL

DORIAN ADDN-TFL-1616-H20-12 Stick Tool Clamp Down Square 0.629 Shank 4.210 OAL

ANSI: ADDN-TFL-1616-H20-12

ISO: ADDN-TFL-1616-H20-12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR61015
Delivery date: 3-5 days
$122.31

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder for double sided part-off inserts

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Texas
Insert Application General Purpose
Insert/Tool Tool
Application Swiss, Ext.Grooving, Parting
Made In USA No
Insert Type Positive
Dimensional Specifications
Tool Width 0.6300
Tool Over Hang 1.2600
Insert Size Ic 20
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Overall Len 4.2100 106.93MM
Cutting & Machining Properties
Inter/Extern External
Hand R/L Left
Insert Shape/Cutter Pocket Shape Other
Insert Style DN
Coolant Thru Yes
