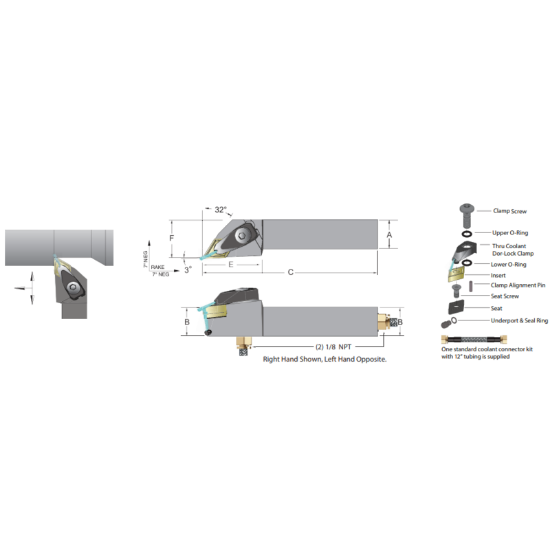

Picture of DORIAN ADDJNR-24-4E 55.0° Square 1.500 Shank 7.000 OAL

DORIAN ADDJNR-24-4E 55.0° Square 1.500 Shank 7.000 OAL

ANSI: ADDJNR-24-4E

ISO: ADDJNR-24-4E

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53024
Delivery date: 3-5 days
$259.09

Details

Neg55°Jet Stream Toolholder RH

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Texas
Application Ext.Turning
Package Size 1
Dimensional Specifications
Clearance Angle 27.0°
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Width 1.5000
Lead Angle 93°
Insert Size Ic 12 "43"
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Size 1.5000 38.10MM
Overall Len 7.0000 177.80MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Hand R/L Right
Cool Sply Type Through
Inter/Extern External
Insert Style DN
Coolant Thru Yes
Fasteners & Connectors
Clamp Screw JSCS-04
Insert Screw SM-S4
Seat Screw JD-432
Clamp/Wedge JSLC-HPD4
