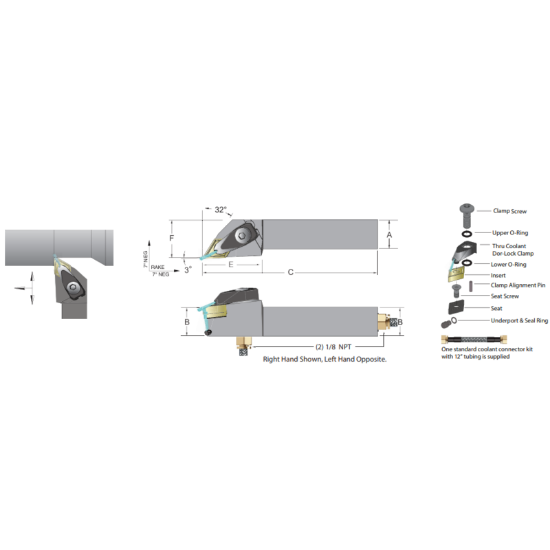

Picture of DORIAN ADDJNR-20-4D 55.0° Square 1.250 Shank 6.000 OAL

DORIAN ADDJNR-20-4D 55.0° Square 1.250 Shank 6.000 OAL

ANSI: ADDJNR-20-4D

ISO: ADDJNR-20-4D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53022
Delivery date: 3-5 days
$203.47

Details

Neg55°Jet Stream Toolholder RH

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Texas
Application Ext.Turning
Package Size 1
Dimensional Specifications
Clearance Angle 27.0°
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.2500 31.75MM
Insert Size Ic 12 "43"
Overall Len 6.0000 152.40MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Lead Angle 93°
Tool Width 1.2500
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
Coolant Thru Yes
Hand R/L Right
Cool Sply Type Through
Inter/Extern External
Fasteners & Connectors
Clamp Screw JSCS-04
Insert Screw SM-S4
Seat Screw JD-432
Clamp/Wedge JSLC-HPD4
