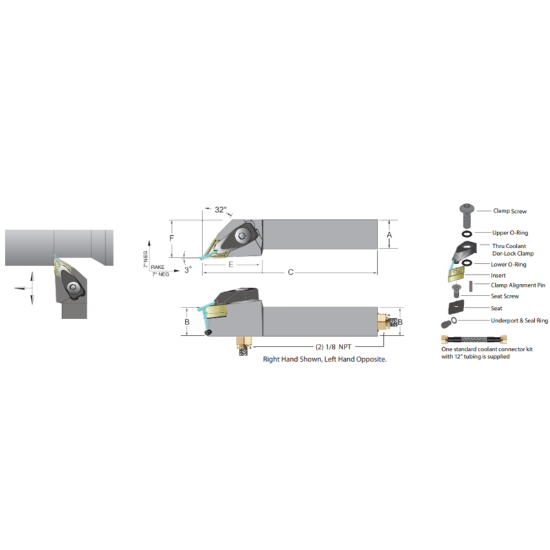

Picture of DORIAN ADDJNR-12-4B 55.0° Square 0.750 Shank 4.500 OAL

DORIAN ADDJNR-12-4B 55.0° Square 0.750 Shank 4.500 OAL

ANSI: ADDJNR-12-4B

ISO: ADDJNR-12-4B

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53018
Delivery date: 3-5 days
$178.60

Details

Neg55°Jet Stream Toolholder RH

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Shipping State Texas
Dimensional Specifications
Clearance Angle 27.0°
Machine Side Connection Type Stick Tool
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Tool Width 0.7500
Overall Len 4.5000 114.30MM
Insert Size Ic 12 "43"
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Lead Angle 93°
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
Coolant Thru Yes
Cool Sply Type Through
Inter/Extern External
Hand R/L Right
Fasteners & Connectors
Clamp Screw JSCS-04
Insert Screw SM-S4
Clamp/Wedge JSLC-HPD4
Seat Screw JD-432
