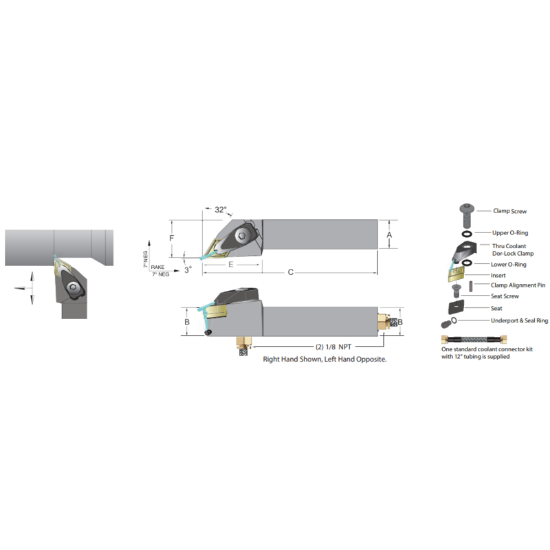

Picture of DORIAN ADDJNR-12-3B 55.0° Square 0.750 Shank 4.500 OAL

DORIAN ADDJNR-12-3B 55.0° Square 0.750 Shank 4.500 OAL

ANSI: ADDJNR-12-3B

ISO: ADDJNR-12-3B

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53016
Delivery date: 3-5 days
$166.71

Details

Neg55°Jet Stream Toolholder RH

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Texas
Dimensional Specifications
Machine Side Connection Size 0.7500 19.05MM
Overall Len 4.5000 114.30MM
Tool Width 0.7500
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Insert Size Ic 11 "33"
Clearance Angle 27.0°
Tool Material Steel
Machine Side Connection Type Stick Tool
Lead Angle 93°
Cutting & Machining Properties
Insert Style DN
Coolant Thru Yes
Cool Sply Type Through
Inter/Extern External
Insert Shape/Cutter Pocket Shape 55.0°
Hand R/L Right
Fasteners & Connectors
Insert Screw SM-M4-245
Seat Screw IDSN-322
Clamp Screw JSCS-04
Clamp/Wedge JSLC-HPD3
