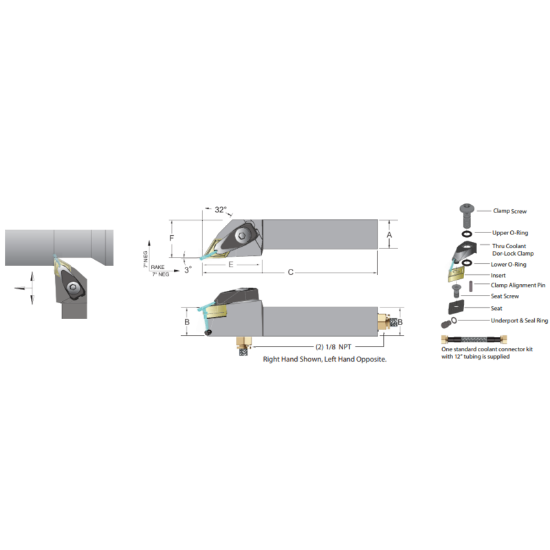

Picture of DORIAN ADDJNL-24-4E 55.0° Square 1.500 Shank 7.000 OAL

DORIAN ADDJNL-24-4E 55.0° Square 1.500 Shank 7.000 OAL

ANSI: ADDJNL-24-4E

ISO: ADDJNL-24-4E

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53025
Delivery date: 3-5 days
$259.09

Details

Neg55°Jet Stream Toolholder LH

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Shipping State Texas
Insert Type Negative
Made In USA No
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Width 1.5000
Lead Angle 93°
Clearance Angle 27.0°
Machine Side Connection Size 1.5000 38.10MM
Overall Len 7.0000 177.80MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 12 "43"
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Hand R/L Left
Inter/Extern External
Cool Sply Type Through
Insert Style DN
Coolant Thru Yes
Fasteners & Connectors
Clamp Screw JSCS-04
Clamp/Wedge JSLC-HPD4
Seat Screw JD-432
Insert Screw SM-S4
