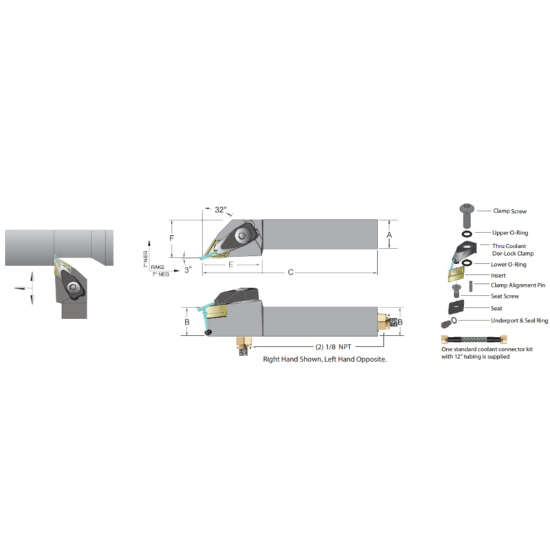

Picture of DORIAN ADDJNL-16-4D 55.0° Square 1.000 Shank 6.000 OAL

DORIAN ADDJNL-16-4D 55.0° Square 1.000 Shank 6.000 OAL

ANSI: ADDJNL-16-4D

ISO: ADDJNL-16-4D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53021
Delivery date: 3-5 days
$191.45

Details

Neg55°Jet Stream Toolholder LH

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Texas
Insert Application General Purpose
Insert Type Negative
Made In USA No
Application Ext.Turning
Package Size 1
Dimensional Specifications
Insert Size Ic 12 "43"
Overall Len 6.0000 152.40MM
Lead Angle 93°
Machine Side Connection Size 1.0000 25.40MM
Tool Width 1.0000
Tool Material Steel
Machine Side Connection Type Stick Tool
Clearance Angle 27.0°
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Insert Style DN
Coolant Thru Yes
Hand R/L Left
Insert Shape/Cutter Pocket Shape 55.0°
Inter/Extern External
Cool Sply Type Through
Fasteners & Connectors
Insert Screw SM-S4
Seat Screw JD-432
Clamp Screw JSCS-04
Clamp/Wedge JSLC-HPD4
