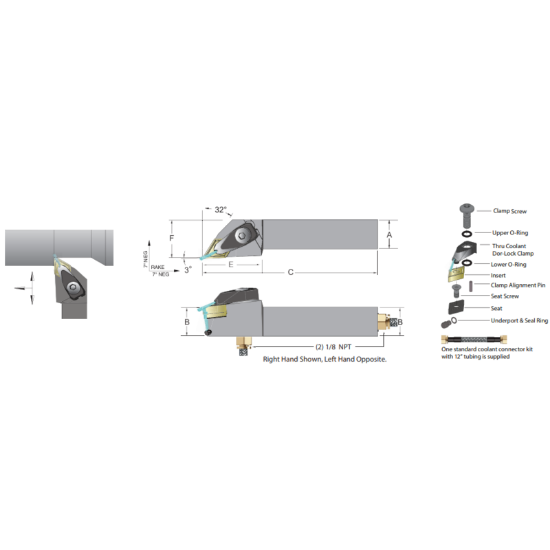

Picture of DORIAN ADDJNL-12-4B 55.0° Square 0.750 Shank 4.500 OAL

DORIAN ADDJNL-12-4B 55.0° Square 0.750 Shank 4.500 OAL

ANSI: ADDJNL-12-4B

ISO: ADDJNL-12-4B

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53019
Delivery date: 3-5 days
$178.60

Details

Neg55°Jet Stream Toolholder LH

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Shipping State Texas
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Made In USA No
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Insert Size Ic 12 "43"
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.7500 19.05MM
Tool Width 0.7500
Clearance Angle 27.0°
Lead Angle 93°
Overall Len 4.5000 114.30MM
Cutting & Machining Properties
Cool Sply Type Through
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
Hand R/L Left
Coolant Thru Yes
Inter/Extern External
Fasteners & Connectors
Clamp/Wedge JSLC-HPD4
Seat Screw JD-432
Insert Screw SM-S4
Clamp Screw JSCS-04
