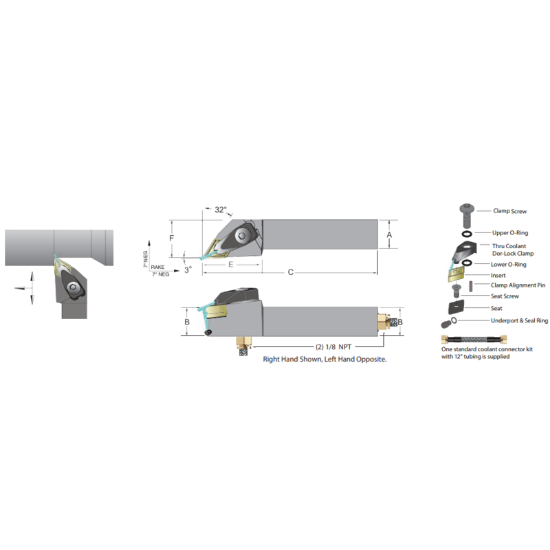

Picture of DORIAN ADDJNL-12-3B 55.0° Square 0.750 Shank 4.500 OAL

DORIAN ADDJNL-12-3B 55.0° Square 0.750 Shank 4.500 OAL

ANSI: ADDJNL-12-3B

ISO: ADDJNL-12-3B

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53017
Delivery date: 3-5 days
$166.71

Details

Neg55°Jet Stream Toolholder LH

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Made In USA No
Application Ext.Turning
Package Size 1
Shipping State Texas
Dimensional Specifications
Overall Len 4.5000 114.30MM
Machine Side Connection Size 0.7500 19.05MM
Tool Width 0.7500
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 11 "33"
Clearance Angle 27.0°
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Lead Angle 93°
Cutting & Machining Properties
Cool Sply Type Through
Insert Style DN
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape 55.0°
Inter/Extern External
Hand R/L Left
Fasteners & Connectors
Insert Screw SM-M4-245
Clamp Screw JSCS-04
Seat Screw IDSN-322
Clamp/Wedge JSLC-HPD3
