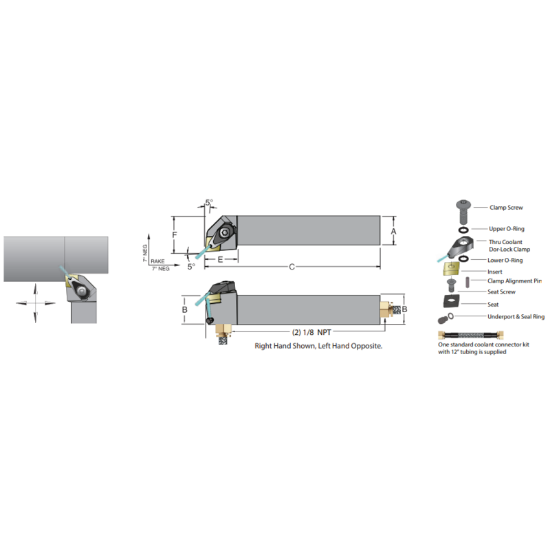

Picture of DORIAN ADCLNR-24-5E 80.0° Square 1.500 Shank 7.000 OAL

DORIAN ADCLNR-24-5E 80.0° Square 1.500 Shank 7.000 OAL

ANSI: ADCLNR-24-5E

ISO: ADCLNR-24-5E

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53010
Delivery date: 3-5 days
$241.82

Details

Neg 80°Jet Stream Toolholder R

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Application Ext.Turning
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 16 "54"
Overall Len 7.0000 177.80MM
Tool Width 1.5000
Lead Angle 95°
Machine Side Connection Size 1.5000 38.10MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
Cool Sply Type Through
Insert Style CN
Inter/Extern External
Fasteners & Connectors
Seat Screw JC-533
Clamp Screw JSCS-04
Insert Screw SM-M6
Clamp/Wedge JSLC-HPC5
