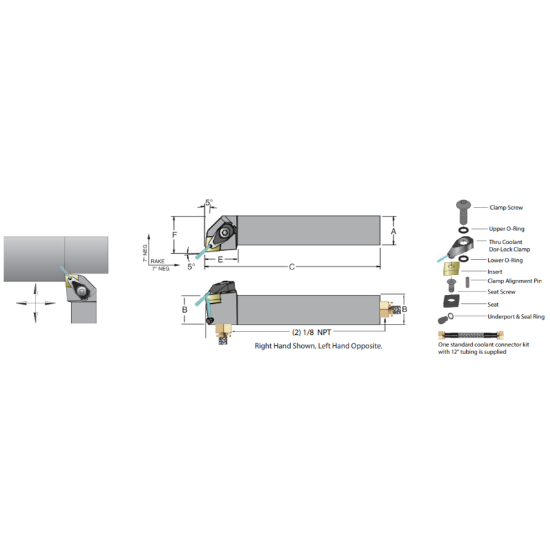

Picture of DORIAN ADCLNR-12-4B 80.0° Square 0.750 Shank 4.500 OAL

DORIAN ADCLNR-12-4B 80.0° Square 0.750 Shank 4.500 OAL

ANSI: ADCLNR-12-4B

ISO: ADCLNR-12-4B

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53000
Delivery date: 3-5 days
$154.81

Details

Neg 80°Jet Stream Toolholder RH

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Shipping State Texas
Insert Type Negative
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Lead Angle 95°
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Tool Width 0.7500
Overall Len 4.5000 114.30MM
Insert Size Ic 12 "43"
Cutting & Machining Properties
Cool Sply Type Through
Insert Style CN
Inter/Extern External
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
Fasteners & Connectors
Seat Screw JC-432
Insert Screw SM-S4
Clamp/Wedge JSLC-HPCTW-4N
Clamp Screw JSCS-04
