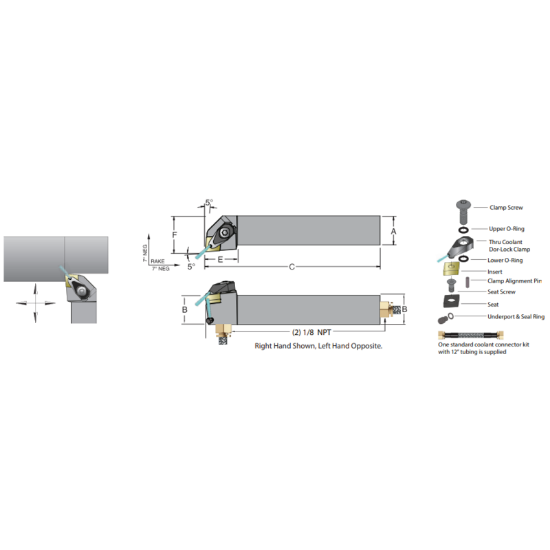

Picture of DORIAN ADCLNL-24-4E 80.0° Square 1.500 Shank 7.000 OAL

DORIAN ADCLNL-24-4E 80.0° Square 1.500 Shank 7.000 OAL

ANSI: ADCLNL-24-4E

ISO: ADCLNL-24-4E

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53009
Delivery date: 3-5 days
$241.82

Details

Neg 80°Jet Stream Toolholder L

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Ext.Turning
Package Size 1
Shipping State Texas
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Dimensional Specifications
Insert Size Ic 12 "43"
Machine Side Connection Size 1.5000 38.10MM
Overall Len 7.0000 177.80MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Width 1.5000
Lead Angle 95°
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Cutting & Machining Properties
Insert Style CN
Inter/Extern External
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Left
Coolant Thru Yes
Cool Sply Type Through
Fasteners & Connectors
Clamp Screw JSCS-04
Clamp/Wedge JSLC-HPCTW-4N
Insert Screw SM-S4
Seat Screw JC-432
