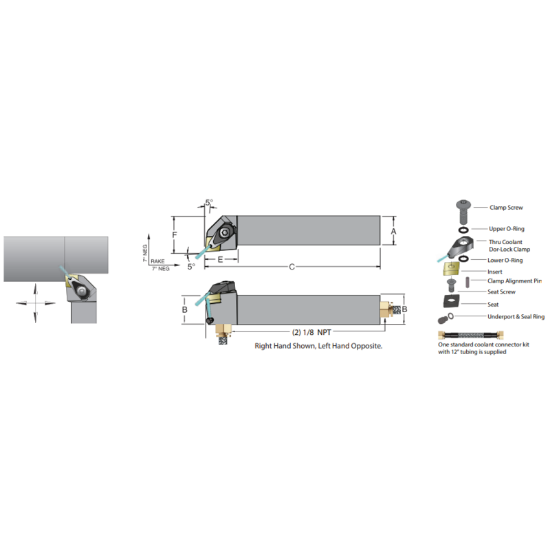

Picture of DORIAN ADCLNL-20-4D 80.0° Square 1.250 Shank 6.000 OAL

DORIAN ADCLNL-20-4D 80.0° Square 1.250 Shank 6.000 OAL

ANSI: ADCLNL-20-4D

ISO: ADCLNL-20-4D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53005
Delivery date: 3-5 days
$189.91

Details

Neg 80°Jet Stream Toolholder L

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Texas
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Dimensional Specifications
Lead Angle 95°
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.2500 31.75MM
Insert Size Ic 12 "43"
Overall Len 6.0000 152.40MM
Tool Width 1.2500
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Cool Sply Type Through
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Left
Coolant Thru Yes
Insert Style CN
Inter/Extern External
Fasteners & Connectors
Clamp Screw JSCS-04
Clamp/Wedge JSLC-HPCTW-4N
Insert Screw SM-S4
Seat Screw JC-432
