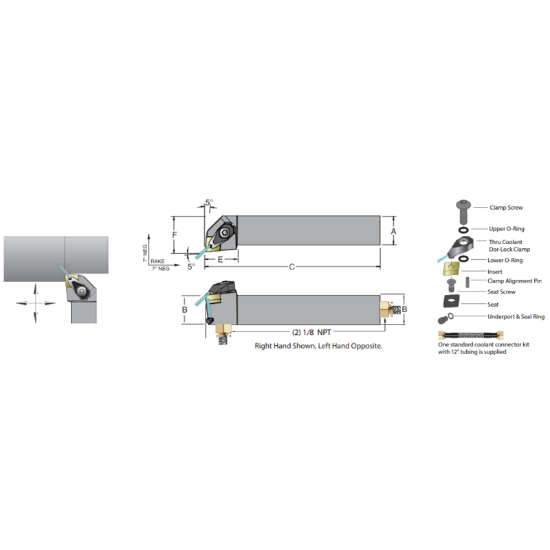

Picture of DORIAN ADCLNL-12-4B 80.0° Square 0.750 Shank 4.500 OAL

DORIAN ADCLNL-12-4B 80.0° Square 0.750 Shank 4.500 OAL

ANSI: ADCLNL-12-4B

ISO: ADCLNL-12-4B

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53001
Delivery date: 3-5 days
$154.81

Details

Neg 80°Jet Stream Toolholder LH

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Texas
Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Tool Width 0.7500
Tool Material Steel
Machine Side Connection Type Stick Tool
Lead Angle 95°
Insert Size Ic 12 "43"
Overall Len 4.5000 114.30MM
Cutting & Machining Properties
Insert Style CN
Inter/Extern External
Coolant Thru Yes
Cool Sply Type Through
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Left
Fasteners & Connectors
Seat Screw JC-432
Insert Screw SM-S4
Clamp Screw JSCS-04
Clamp/Wedge JSLC-HPCTW-4N
