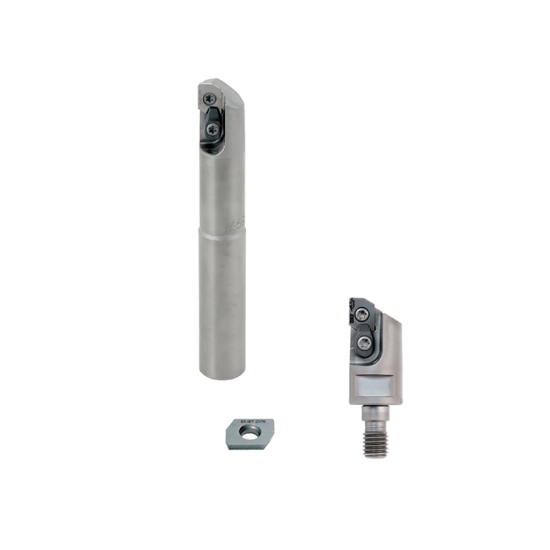

Picture of DIJET T-FON1200 Milling Cutter 0.787 Cutter Diameter Round 0.787 Shank 4.720 OAL 1 Flute

DIJET T-FON1200 Milling Cutter 0.787 Cutter Diameter Round 0.787 Shank 4.720 OAL 1 Flute

ANSI: T-FON1200

ISO: T-FON1200

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: DIJT-FON1200
Delivery date: 3-5 days
$166.33
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing
Insert Type Positive
Application Face Milling, Micro Finishing
Shipping State Michigan
Insert/Tool Tool
Package Size 1
Made In USA No
Dimensional Specifications
Overall Len 4.7200 119.89MM
Machine Side Connection Size 0.7874 20.00MM
Shank/Pilot Dia 0.7874 20.00MM
Neck Dia 0.7480
Tool Material Steel
Insert Size Ic 12
Cutter Dia 0.7870 19.99MM
Neck Length 2.3622 60.00MM
Flutes/Inserts 1
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style LD
