  • DIJET SWB-2150-200-8 Milling Cutter Ball Mill 1.500 Cutter Diameter Weldon 2.000 Shank 8.000 OAL 2 Flute

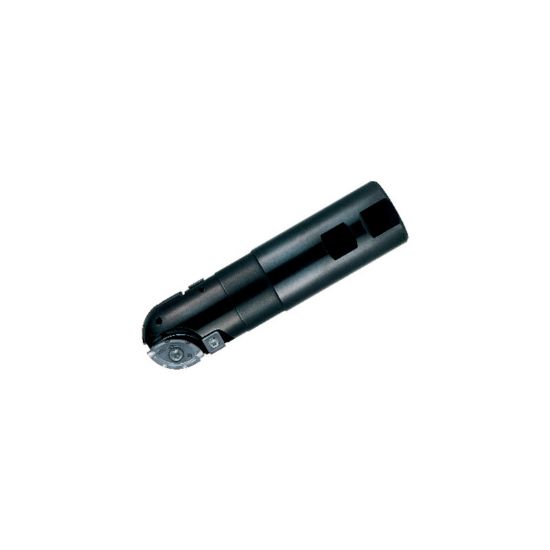

Picture of DIJET SWB-2150-200-8 Milling Cutter Ball Mill 1.500 Cutter Diameter Weldon 2.000 Shank 8.000 OAL 2 Flute

DIJET SWB-2150-200-8 Milling Cutter Ball Mill 1.500 Cutter Diameter Weldon 2.000 Shank 8.000 OAL 2 Flute

ANSI: SWB-2150-200-8

ISO: SWB-2150-200-8

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: DIJSWB-2150-200-8
Delivery date: 3-5 days
$521.44
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Finishing, Semi Finishing
Insert Type Positive
Application Profile Milling, Copy Milling
Shipping State Michigan
Package Size 1
Made In USA No
Dimensional Specifications
Depth Of Cut Max 1.9700
Tool Material Steel
Machine Side Connection Size 2.0000 50.80MM
Overall Len 8.0000 203.20MM
Shank/Pilot Dia 2.0000 50.80MM - 2
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Weldon
Dimension Description 1.500 x 2.000 x 1.970 x 8.000
Insert Size Ic 215
Neck Length 4.7500 120.65MM
Flutes/Inserts 2
Length Of Cut 1.9700 50.04MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Ball
Insert Style SW,IM
Fasteners & Connectors
Insert Screw TSW-511,CSW-407
