  • DIJET SWB-2125-150-10 Milling Cutter Ball Mill 1.250 Cutter Diameter Weldon 1.500 Shank 10.00 OAL 2 Flute

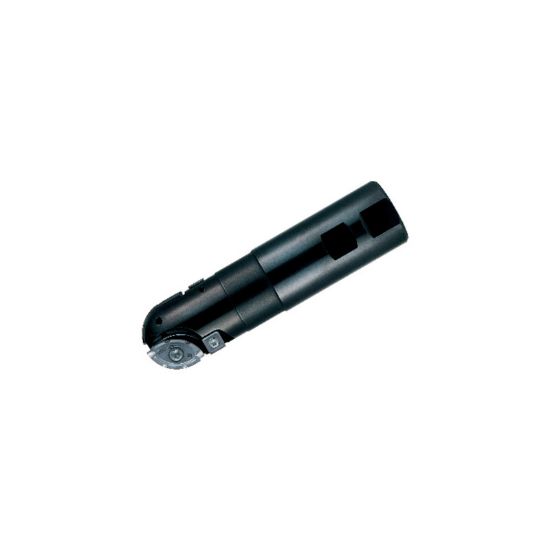

Picture of DIJET SWB-2125-150-10 Milling Cutter Ball Mill 1.250 Cutter Diameter Weldon 1.500 Shank 10.00 OAL 2 Flute

DIJET SWB-2125-150-10 Milling Cutter Ball Mill 1.250 Cutter Diameter Weldon 1.500 Shank 10.00 OAL 2 Flute

ANSI: SWB-2125-150-10

ISO: SWB-2125-150-10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: DIJSWB-2125-150-10
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 1
Insert Application Semi Finishing, Finishing
Application Copy Milling, Profile Milling
Insert/Tool Tool
Insert Type Positive
Shipping State Michigan
Dimensional Specifications
Machine Side Connection Size 1.5000 38.10MM
Flutes/Inserts 2
Machine Side Connection Type Weldon
Overall Len 10.0000 254.00MM
Length Of Cut 1.6700 42.42MM
Cutter Dia 1.2500 31.75MM - 1-1/4
Neck Length 6.7500 171.45MM
Dimension Description 1.250 x 1.500 x 1.670 x 10.000
Insert Size Ic 212
Tool Material Steel
Depth Of Cut Max 1.6700
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Ball
Insert Style SW,IM
Fasteners & Connectors
Insert Screw DWS-509,CSW-407
