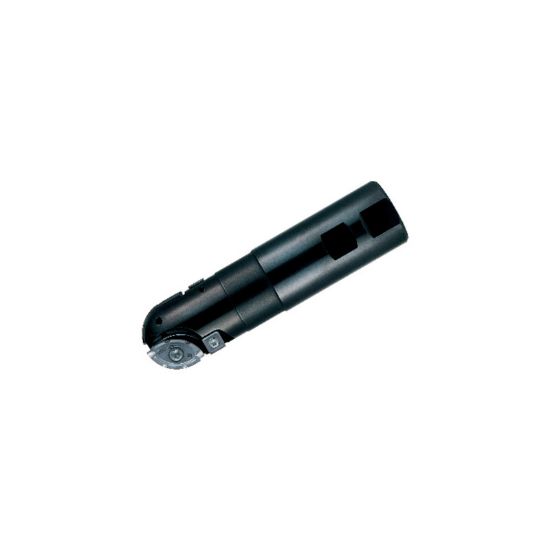

DIJET SWB-2100-100-5 Milling Cutter Ball Mill 1.000 Cutter Diameter Weldon 1.000 Shank 5.000 OAL 2 Flute

ANSI: SWB-2100-100-5

ISO: SWB-2100-100-5

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: DIJSWB-2100-100-5
Delivery date: 3-5 days
$411.66
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Finishing, Semi Finishing
Insert Type Positive
Application Profile Milling, Copy Milling
Shipping State Michigan
Package Size 1
Made In USA No
Dimensional Specifications
Dimension Description 1.000 x 1.000 x 1.400 x 5.000
Tool Material Steel
Neck Length 2.7500 69.85MM
Flutes/Inserts 2
Depth Of Cut Max 1.4000
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Machine Side Connection Type Weldon
Overall Len 5.0000 127.00MM
Insert Size Ic 210
Cutter Dia 1.0000 25.40MM
Length Of Cut 1.4000 35.56MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Ball
Insert Style SW,ZC
Fasteners & Connectors
Insert Screw DWS-4085,ESW-206
