  • DIJET SWB-2100-100-10 Milling Cutter Ball Mill 1.000 Cutter Diameter Weldon 1.250 Shank 10.00 OAL 2 Flute

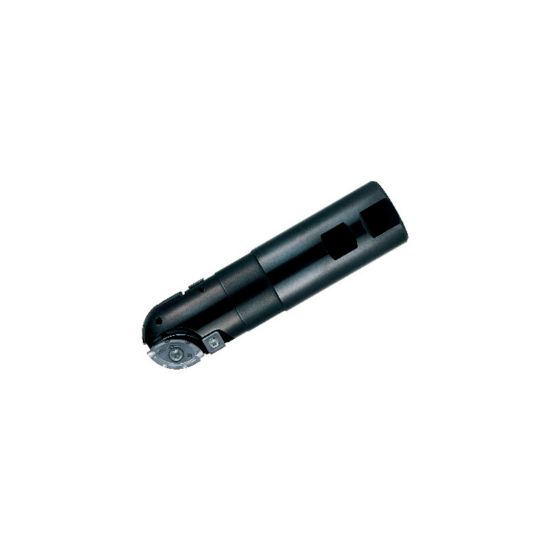

Picture of DIJET SWB-2100-100-10 Milling Cutter Ball Mill 1.000 Cutter Diameter Weldon 1.250 Shank 10.00 OAL 2 Flute

DIJET SWB-2100-100-10 Milling Cutter Ball Mill 1.000 Cutter Diameter Weldon 1.250 Shank 10.00 OAL 2 Flute

ANSI: SWB-2100-100-10

ISO: SWB-2100-100-10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: DIJSWB-2100-100-10
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Profile Milling
Insert/Tool Tool
Insert Application Finishing, Semi Finishing
Insert Type Positive
Shipping State Michigan
Package Size 1
Made In USA No
Dimensional Specifications
Depth Of Cut Max 1.4000
Neck Length 5.0000 127.00MM
Overall Len 10.0000 254.00MM
Shank/Pilot Dia 1.0000 25.40MM
Dimension Description 1.000 x 1.000 x 1.400 x 10.000
Tool Material Steel
Insert Size Ic 210
Cutter Dia 1.0000 25.40MM
Machine Side Connection Size 1.2500 31.75MM
Length Of Cut 1.4000 35.56MM
Flutes/Inserts 2
Machine Side Connection Type Weldon
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Ball
Insert Style SW,ZC
Fasteners & Connectors
Insert Screw DWS-4085,ESW-206
