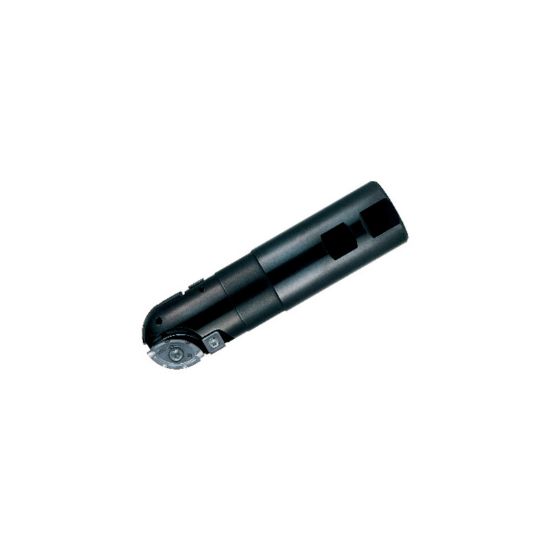

DIJET SWB-2075-6 Milling Cutter Ball Mill 0.750 Cutter Diameter Weldon 1.000 Shank 6.030 OAL 2 Flute

ANSI: SWB-2075-6

ISO: SWB-2075-6

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: DIJSWB-2075-6
Delivery date: 3-5 days
$418.53
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Semi Finishing, Finishing
Application Copy Milling, Profile Milling
Made In USA No
Shipping State Michigan
Package Size 1
Insert Type Positive
Dimensional Specifications
Dimension Description 0.750 x 1.000 x 1.140 x 6.030
Insert Size Ic 20
Tool Material Steel
Overall Len 6.0300 153.16MM
Machine Side Connection Type Weldon
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Neck Length 3.7500 95.25MM
Length Of Cut 1.1400 28.96MM
Depth Of Cut Max 1.1400
Cutter Dia 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Ball
Insert Style SW,ZC
Fasteners & Connectors
Insert Screw DWS-307H,ESW-206
