  • DIJET SWB-2075-4 Milling Cutter Ball Mill 0.750 Cutter Diameter Weldon 0.750 Shank 4.030 OAL 2 Flute

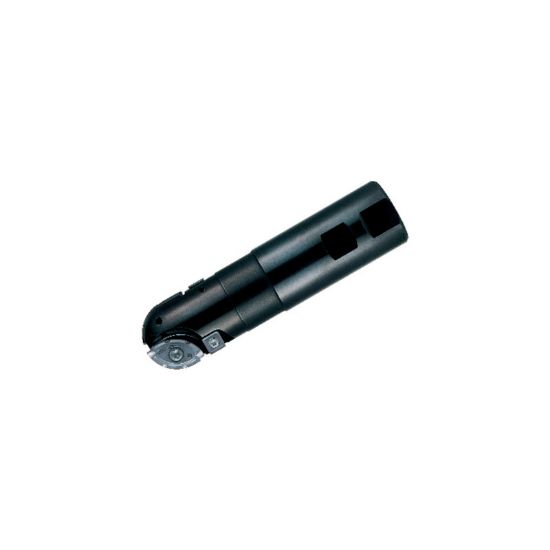

Picture of DIJET SWB-2075-4 Milling Cutter Ball Mill 0.750 Cutter Diameter Weldon 0.750 Shank 4.030 OAL 2 Flute

DIJET SWB-2075-4 Milling Cutter Ball Mill 0.750 Cutter Diameter Weldon 0.750 Shank 4.030 OAL 2 Flute

ANSI: SWB-2075-4

ISO: SWB-2075-4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: DIJSWB-2075-4
Delivery date: 3-5 days
$397.95
Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Profile Milling
Made In USA No
Insert/Tool Tool
Insert Application Semi Finishing, Finishing
Insert Type Positive
Shipping State Michigan
Package Size 1
Dimensional Specifications
Overall Len 4.0300 102.36MM
Insert Size Ic 20
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Machine Side Connection Type Weldon
Length Of Cut 1.1400 28.96MM
Neck Length 2.0000 50.80MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Dimension Description 0.750 x 0.750 x 1.140 x 4.030
Depth Of Cut Max 1.1400
Cutting & Machining Properties
Insert Style SW,ZC
Insert Shape/Cutter Pocket Shape Ball
Fasteners & Connectors
Insert Screw DWS-307H,ESW-206
