  • DIJET SWB-2075-100-8 Milling Cutter Ball Mill 0.750 Cutter Diameter Weldon 1.000 Shank 8.000 OAL 2 Flute

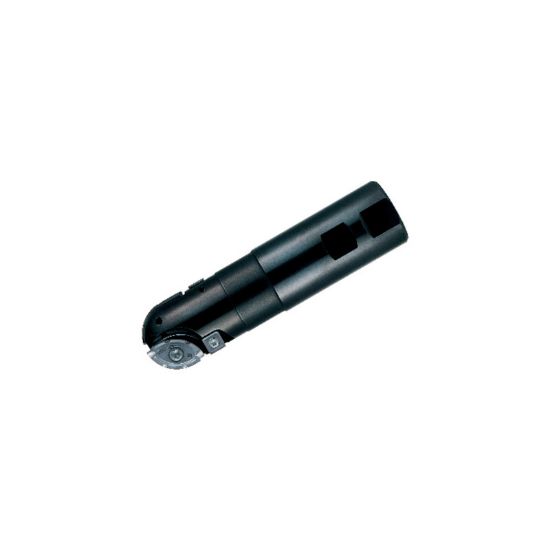

Picture of DIJET SWB-2075-100-8 Milling Cutter Ball Mill 0.750 Cutter Diameter Weldon 1.000 Shank 8.000 OAL 2 Flute

DIJET SWB-2075-100-8 Milling Cutter Ball Mill 0.750 Cutter Diameter Weldon 1.000 Shank 8.000 OAL 2 Flute

ANSI: SWB-2075-100-8

ISO: SWB-2075-100-8

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: DIJSWB-2075-100-8
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Finishing
Application Copy Milling, Profile Milling
Made In USA No
Package Size 1
Insert/Tool Tool
Insert Type Positive
Shipping State Michigan
Dimensional Specifications
Dimension Description 0.750 x 1.000 x 1.140 x 8.000
Length Of Cut 1.1400 28.96MM
Machine Side Connection Type Weldon
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 20
Neck Length 5.7200 145.29MM
Flutes/Inserts 2
Depth Of Cut Max 1.1400
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Overall Len 8.0000 203.20MM
Cutting & Machining Properties
Insert Style SW,ZC
Insert Shape/Cutter Pocket Shape Ball
Fasteners & Connectors
Insert Screw DWS-307H,ESW-206
