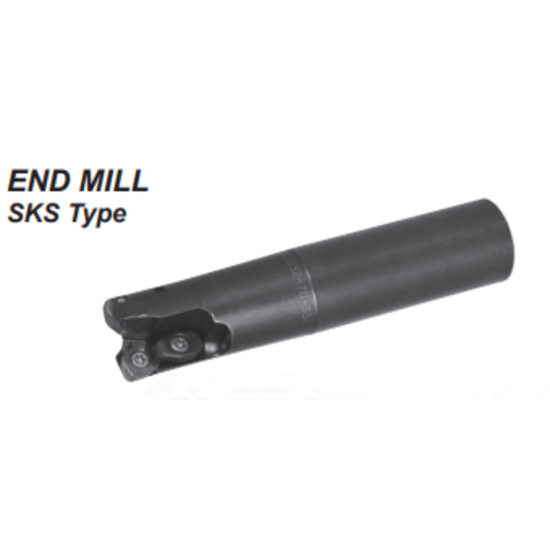

Picture of DIJET SKS-6500-150R-10 Milling Cutter Face Mill 1.500 Shank 2.250 OAL 6 Flute

DIJET SKS-6500-150R-10 Milling Cutter Face Mill 1.500 Shank 2.250 OAL 6 Flute

ANSI: SKS-6500-150R-10

ISO: SKS-6500-150R-10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: DIJSKS-6500-150R-10
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Application Feed Milling, Ramp Milling, Face Milling, Slot Milling, Copy Milling
Insert/Tool Tool
Insert Type Positive
Shipping State Michigan
Package Size 1
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Flutes/Inserts 6
Tool Material Steel
Insert Size Ic 10
Machine Side Connection Size 1.5000 38.10MM
Overall Len 2.2500 57.15MM
Depth Of Cut Max 0.0910
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Trigon
Insert Style WD
Fasteners & Connectors
Insert Screw DSW-4512H
