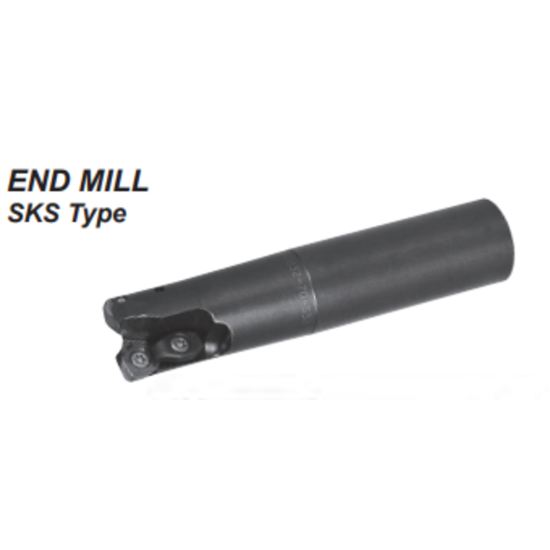

Picture of DIJET SKS-3150-5.0-S150 Milling Cutter Weldon 1.500 Shank 10.00 OAL 3 Flute

DIJET SKS-3150-5.0-S150 Milling Cutter Weldon 1.500 Shank 10.00 OAL 3 Flute

ANSI: SKS-3150-5.0-S150

ISO: SKS-3150-5.0-S150

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: DIJSKS-3150-5.0-S150
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Made In USA No
Package Size 1
Application Copy Milling, Feed Milling, Face Milling, Ramp Milling, Slot Milling
Insert Type Positive
Shipping State Michigan
Dimensional Specifications
Tool Material Steel
Insert Size Ic 8
Depth Of Cut Max 0.0790
Machine Side Connection Size 1.5000 38.10MM
Machine Side Connection Type Weldon
Overall Len 10.0000 254.00MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Flutes/Inserts 3
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Trigon
Insert Style WD
Fasteners & Connectors
Insert Screw DSW-4510H
