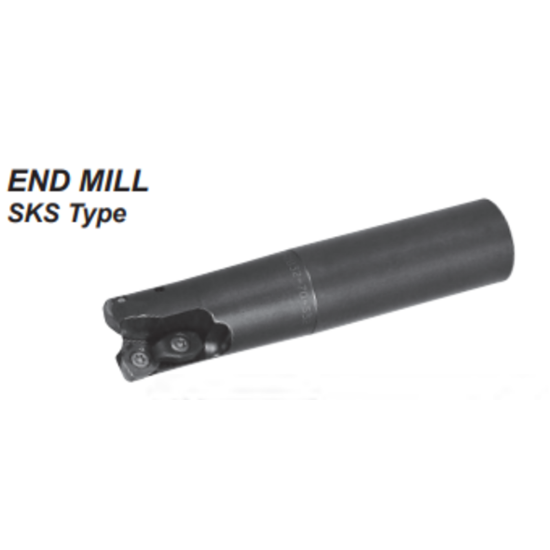

Picture of DIJET SKS-2150-5.0-S125 Milling Cutter Weldon 1.250 Shank 10.00 OAL 2 Flute

DIJET SKS-2150-5.0-S125 Milling Cutter Weldon 1.250 Shank 10.00 OAL 2 Flute

ANSI: SKS-2150-5.0-S125

ISO: SKS-2150-5.0-S125

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: DIJSKS-2150-5.0-S125
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Application Ramp Milling, Face Milling, Slot Milling, Copy Milling, Feed Milling
Insert Type Positive
Insert/Tool Tool
Shipping State Michigan
Package Size 1
Dimensional Specifications
Insert Size Ic 8
Depth Of Cut Max 0.0790
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Weldon
Overall Len 10.0000 254.00MM
Flutes/Inserts 2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Trigon
Insert Style WD
Fasteners & Connectors
Insert Screw DSW-4510H
Only registered users can write reviews
