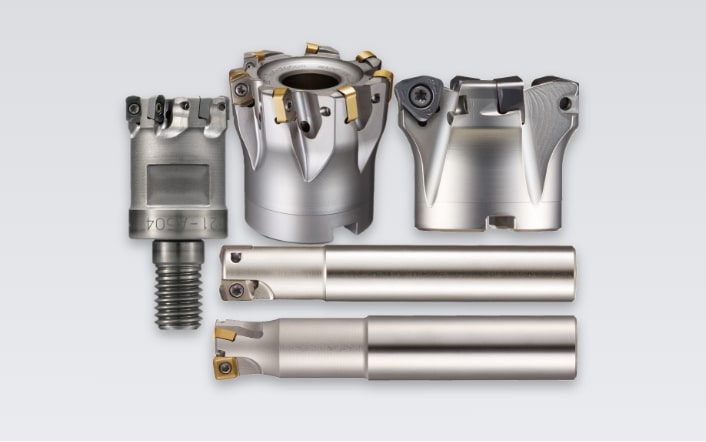

Picture of Dijet SKGS-5035-09-35-S32+A Feed Mill 1.378 Cutter Diameter Round 1.378 Shank 4.724 OAL 5 Flute

Dijet SKGS-5035-09-35-S32+A Feed Mill 1.378 Cutter Diameter Round 1.378 Shank 4.724 OAL 5 Flute

Part Number: DIJSKGS-5035-09-35-S32+A ISO: SKGS-5035-09-35-S32+A ANSI:SKGS-5035-09-35-S32+A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: 1003474
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
DIJET Feed Mill 1.378 Cutter Diameter Round 1.378 Shank 4.724 OAL 5 Flute Steel
Products specifications
Attribute name Attribute value
Shipping State MICHIGAN
Made In USA NO
Cutter Type Indexable Feed Mill
Tool Material Steel
Machine Side Connection Type Cylindrical
Mach Side Connection Size 1.3780 35.00MM
Overall Length 4.7244 120.00MM
Shank/Pilot Dia 1.3780 35.00MM
Flutes/Inserts 5
Tool Dia 1.3780 35.00MM
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style SD
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Insert Size Ic 09 "32"
Depth Of Cut Max 0.0350
Insert Screw DSW-307H
Max Ramp Angle 1.00°
