  • DIJET SICS-3075-S075 Milling Cutter 90.0° 0.750 Cutter Diameter Round 0.750 Shank 4.000 OAL 3 Flute

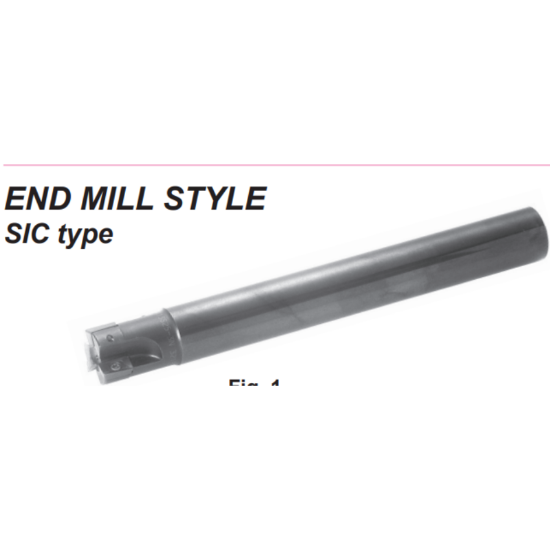

Picture of DIJET SICS-3075-S075 Milling Cutter 90.0° 0.750 Cutter Diameter Round 0.750 Shank 4.000 OAL 3 Flute

DIJET SICS-3075-S075 Milling Cutter 90.0° 0.750 Cutter Diameter Round 0.750 Shank 4.000 OAL 3 Flute

ANSI: SICS-3075-S075

ISO: SICS-3075-S075

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: DIJSICS-3075-S075
Delivery date: 3-5 days
$219.56
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Slot Milling, Ramp Milling, Side Milling, Face Milling
Insert Type Positive
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Michigan
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.4000
Neck Length 1.2500 31.75MM
Insert Size Ic 10
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 3
Tool Material Steel
Overall Len 4.0000 101.60MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Insert Style ZP
Insert Shape/Cutter Pocket Shape Parallelogram
Fasteners & Connectors
Insert Screw EWS-206
