  • DIJET SICM-4150-S125 Milling Cutter 90.0° 1.500 Cutter Diameter Round 1.250 Shank 6.000 OAL 4 Flute

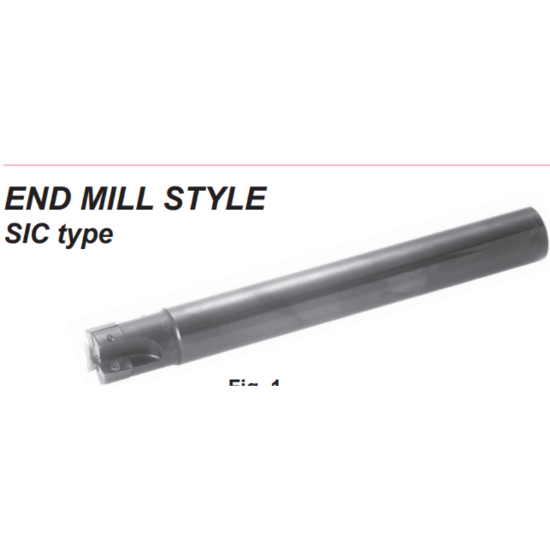

Picture of DIJET SICM-4150-S125 Milling Cutter 90.0° 1.500 Cutter Diameter Round 1.250 Shank 6.000 OAL 4 Flute

DIJET SICM-4150-S125 Milling Cutter 90.0° 1.500 Cutter Diameter Round 1.250 Shank 6.000 OAL 4 Flute

ANSI: SICM-4150-S125

ISO: SICM-4150-S125

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: DIJSICM-4150-S125
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Insert Type Positive
Application Face Milling, Ramp Milling, Side Milling, Slot Milling, Pocket Milling
Shipping State Michigan
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Size 1.2500 31.75MM
Insert Size Ic 16
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 4
Depth Of Cut Max 0.6000
Neck Length 3.7200 94.49MM
Overall Len 6.0000 152.40MM
Tool Material Steel
Cutting & Machining Properties
Insert Style ZP
Insert Shape/Cutter Pocket Shape Parallelogram
Fasteners & Connectors
Insert Screw TSW-408
